Lego compatible Android minifigure

Description

3D printed Android mini figure

Features

• Moveable arms, hands, legs and head
• LEGO compatible
• Miniature legs


Development

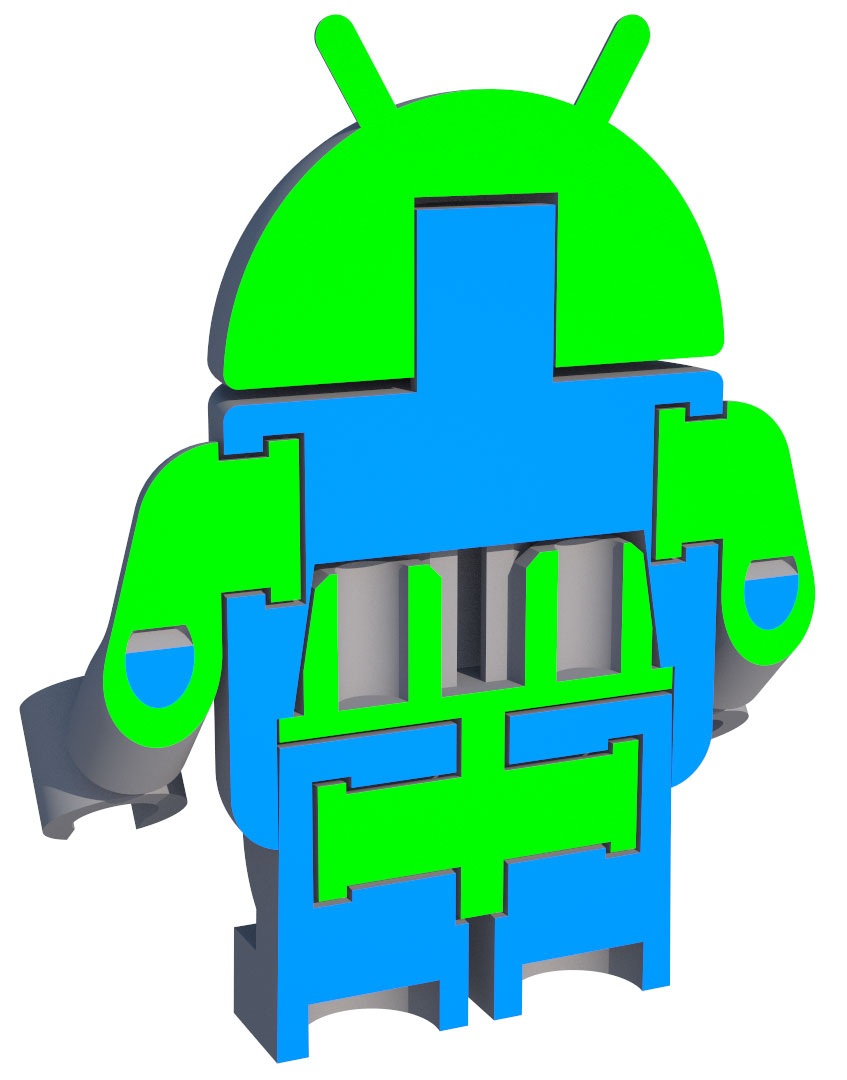

Since I develop mobile phones, I thought it would be cute to have an Android as a minifig. I already had the Lego Stormtrooper as a Rhino 3d model, so it was easy to reuse the arms, hands and legs. The first version had an android vest on top of a standard minifig torso. But the proportions were not quite right, so I did a second version with a custom made torso, with standard arms, neck and leg attachment. The normal legs were too long, so I created a shorter version.

Specification

Dimensions [mm]: 27x18x34mm (wxdxh)

Caution

The model is intended for private use only. It is Lego compatible, but not a 100% copy. See it as a 3D printer demo. Please note that a 3D print will cost more than the real figure and is not as accurate. The model is not suitable for mass production (draft angles, wall thickness etc)

Version tracker

0.1                       Android vest on standard torso
0.2                       Custom made torso
0.3                       Shorter legs
Future                  no updates planned

Documents

Rhino project file (3D model)
3D export (.stl)

See also
Lego Stormtrooper

Licensing

This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 3.0 Unported License.
